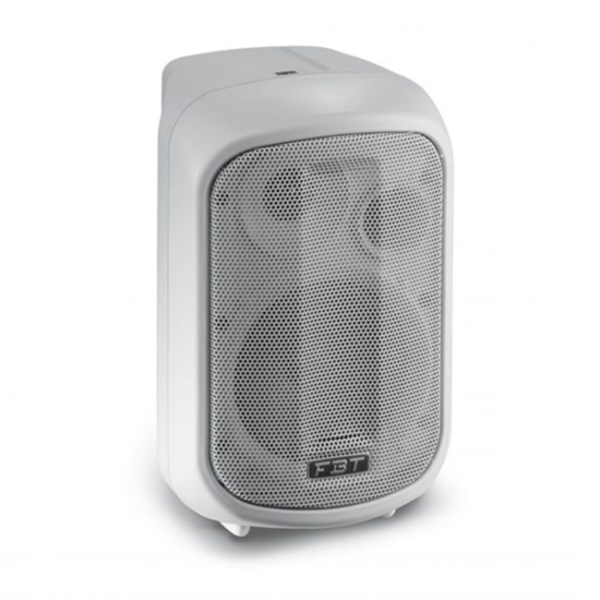

The FBT J5 series speakers feature lightweight, yet rugged gas injected moulded polypropylene cabinet construction. Available in black or white finish the FBT J5 series speakers modern cabinet appearance provides fixed installations with an elegant design that blends into any decor. With the use of optional accessories the FBT J5 speakers can be mounted on mic stands for many nearfield monitor applications, live sound and as a studio monitor. The FBT J5 is of two way design incorporating an 5′ low frequency woofer and 1′ HF custom compression driver. Cabinet dispersion is 90H x 90V allowing for wide pattern coverage. The internal crossover is at a fixed frequency of 3.5kHz. With a frequency range of 90Hz – 20kHz the FBT J5 speakers provide high fidelity sound for both speech and music applications with a maximum SPL of 117dB. A front face steel grille protects the speaker from external damage. Ideal for small fixed installations the FBT J5 speaker system have an impedance of 16 Ohm allowing four FBT J5 speakers to be utilized per channel, for a total of eight J5 speakers when used with a stereo power amplifier capable of operating at 2 Ohm. The two M6 fly points built into the cabinets along with the optional mounting brackets allow the FBT J5 speakers to be surface mounted on walls or ceiling. Specifications 2-way passive sound reinforcement system Polypropylene enclosure 1 x 5′ custom woofer 1 x 1′ neodymium silk dome tweeter 80W RMS recommended amplifier 40W long term power 160W short term power IEC 268-5 2 x M6 suspension points Internal passive crossover filter Input panel with jack and terminal connector Available in white colour Completely manufactured in Italy Code: 37830 / 37907 White Configuration: 2 Way Frequency response: 90Hz – 20kHz Low Frequency woofer: 5′ with 1′ VC High Frequency driver: 1′ Dome Tweeter Maximum SPL cont/peak: 114/117 dB Dispersion: 90 x 90 (HxV) Input impedance: 16ohm Crossover Frequency: 3.5kHz Input connector: Jack Terminal Net Dimension (WxHxD): 170 x 275 x 180mm / 6.69 x 10.82 x 7.08in Net Weight: 3.4kg / 7.49lb Transport Dimension (WxHxD): 240 x 345 x 235mm / 9.44 x 13.58 x 9.25in Transport Weight: 4.2kg / 9.25lb SKU: TVA0306-378.300FB Categories: Passive Speakers, Sound, Speakers
