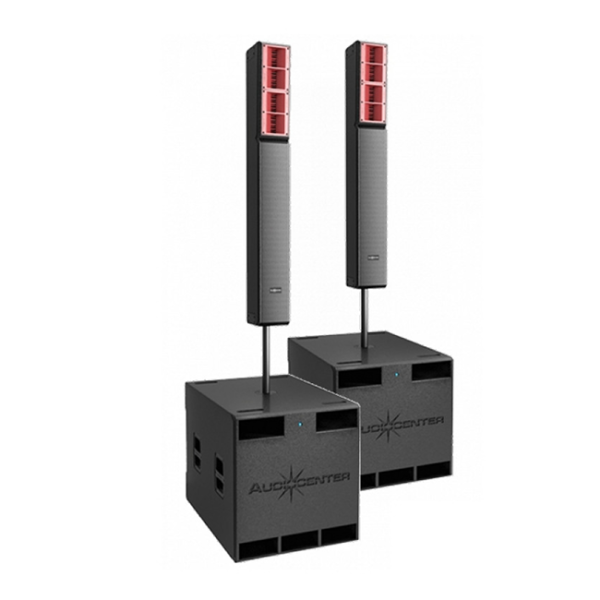

Product Overview L65 L65S system is a multi-purpose active DSP column system consisting of a passive full-range column speaker L65 and an active DSP controlled compact single 18” subwoofer L65S. L65 passive full-range column speaker is built with 6pcs 5″ customized Audiocenter ferrite drivers and 4pcs 1″ customized Beyma ferrite drivers. The drivers are designed with sophisticated measurement and arranged elaborately by physical calibration technology Phycal™ to improve vertical acoustic beam coverage. The ETE™ waveguide system developed by Audiocenter forms cylindrical wave, then couples continually, working together with customized horn design to realize the perfect joint of frequency response, which provides the accurate horizontal coverage and ensures the well-balanced, clean and clear sound. L65 can meet the reinforcement application in different venues and complex space. Specifications Type Active DSP-controlled Column Speaker System Frequency Response(-6dB anechoic chamber) 40Hz-20KHz Maximum Calculated SPL/1M 134dB Subwoofer Customized Audiocenter ferrite driver, 1pcs 18” driver LF Driver Customized Audiocenter ferrite driver, 6pcs 5” drivers HF Driver Customized Beyma ferrite driver, 4pcs 1” drivers Horizontal Coverage Angle(Symmetrical) 110° Vertical Coverage Angle(Symmetrical) 10° DSP Processor Crossover 96KHz signal sampling frequency, 24bit precision controlled by DSP Class D amplifier Power 3600W Frequency Response 20Hz-20KHz(±0.5dB) Intermodulation Distortion ＜0.05% Total Harmonic Distortion ＜0.05% Protection DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, undervoltage protection Cooling System Fans air convection Output/Input Signal Input 2×Combo (NEUTRIK® female XLR & Mono jack 6.35), 1×Bluetooth Signal Output 1×NEUTRIK® male XLR Amplifier Output Link L65 1×NEUTRIK® NL4MP Column Input Link L118S-A 1×NEUTRIK® NL4MP Power Input 3 pin power socket Working Voltage 100-130V/60Hz or 220-240V/50Hz Cabinet Cabinet Material CNC made of excellent wood Base bracket hole Φ35mm (0/10° adjustable) Cabinet Color Black is standard and default color. Consult with Audiocenter sales team for other customized colors Dimension(W×H×D) L65 156×1224×177mm L65S 590×599×815mm Height for 1pc L65 1pc L65S Pole 2100mm Net Weight L65 18Kg L65S 54Kg Categories: Active Speakers, Sound, Speakers
